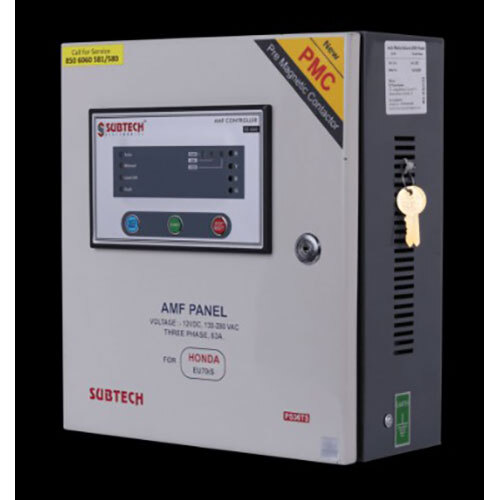

15 KVA AMF Panel

About 15 KVA AMF Panel

Salient Features

Operating Volt: 140- 280 VAC (P-N)

Contactor coil activates only for 1 sec

Automatic load transfer among Mains and genset

Auto Start/Auto Stop the Genset when Mains fails/restores

Mains input: 3 phase, Gen input: 3 phase

LED Indications for mains (R-Y-B), gen ON, load ON, mode & fault

Minimum changeover time to protect sensitive equipment

Mains restore delay time: 5 sec, Cranking time: 3-5 sec., Cool down time: 10 sec

Gen output delay time: 8-10 sec, 3 cranking attempts for genset with 15 sec intervals

Microcontrolled based system with Electrical interlocking

Audio visual alarm on common Genset faults

Soft button for Auto/Manual mode selection, manual start/stop

Battery charger inbuilt

Compatible for new electronic controller based and old key type genset as well.

Three pole and Four pole available

Current rating 63 Amp. to 150 Amp., suitable for upto 63kVA genset

Fabrication: Powder Coated GI Box, Wall mounting, compact size

Works well on low / high voltages, no chattering or coil burning, smooth switching

Long life and maintenance free

Heavy duty DMC connection terminal block

Screw tight connection for 63 A. and ring type thimble for 100 and 150 A.
